Prefabricated foundation XL (101 kg) made of concrete for "DIE-LADESÄULE.DE" charging station, base or stele
Prefabricated foundation XL (101 kg) made of concrete for "DIE-LADESÄULE.DE" charging station, base or stele
zzgl. 99€ Versandkosten (Speditionsversand)
Delivery: • Stock status: The delivery time for the prefabricated foundation is 15 days
Couldn't load pickup availability
100% Free Shipping
100% Free Shipping
We hate shipping costs too! With us you do not pay any shipping costs within Germany.
Pay however it suits you best
Pay however it suits you best
You read that right, regardless of whether via PayPal. Sofortüberweisung, Klarna, invoice, credit card, bank transfer, Giropay and many more. We currently offer 11 payment methods. There's sure to be one that's right for you.
Super fast delivery
Super fast delivery
If the goods are in stock, everything will be shipped within 24 hours via DHL or DPD. Often even on the same day if you order before 12 p.m. In 90% of cases, delivery is the next day.
Lasts a lifetime, I promise!
Lasts a lifetime, I promise!
We guarantee that our charging station is made of 100% stainless steel (V2A) and is therefore made to last. It is therefore a one-time investment and extremely sustainable!

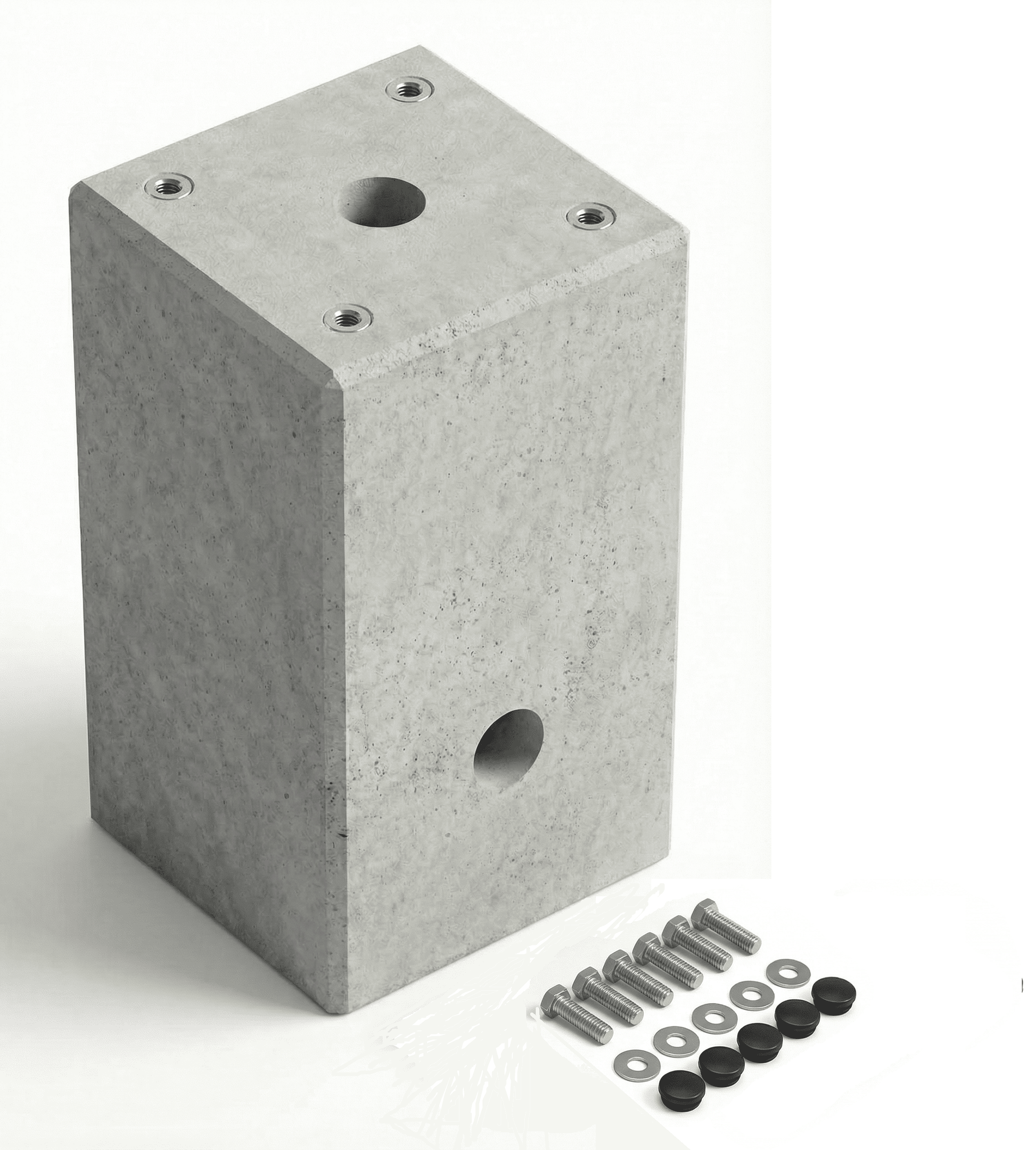

Charging stations prefabricated foundation XL made of concrete - 101 kg.
Our prefabricated foundation for our own stainless steel charging stations , made from special frost-proof aerated concrete, is manufactured specifically for our products. The prefabricated foundation XL is produced in Germany like all our products . This guarantees the safe and correct installation of our columns. By using it, a flat installation surface is achieved and high stability is ensured by factory-installed screw anchors with hexagon screws supplied.
In combination with our charging station, the concrete foundation can be sunk into the ground.
Please note that this foundation is delivered on a pallet. It weighs 101 kg! This foundation can only be moved with a mini excavator or similar machine. If you do not have one on site, please use our standard foundation which can be moved by one person at 31 kg.
The anchoring set supplied can be easily screwed into the embedded metal threaded sleeves. The ground cable for connecting the charging station is pulled through the 80mm cable duct.

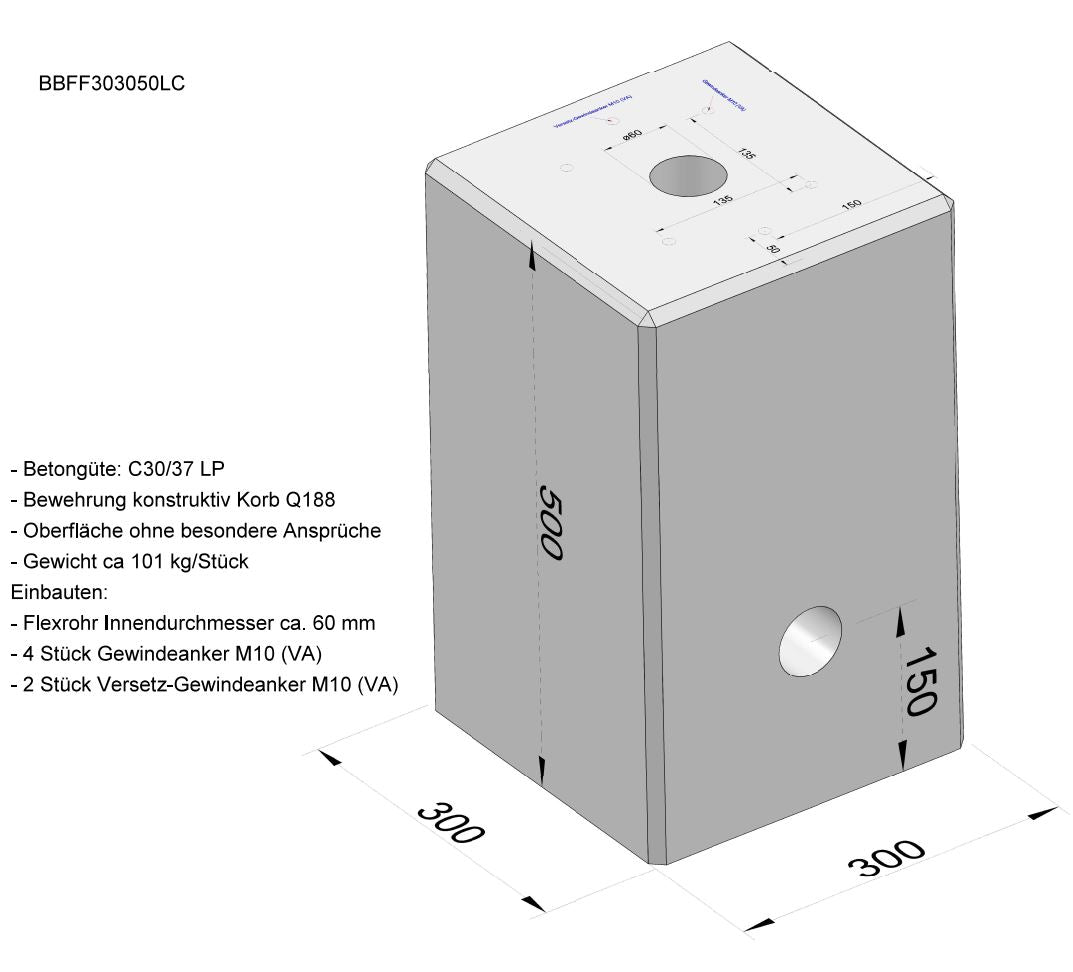

Specifications
- Concrete quality: C30/37 LP frost/de-icing salt resistant
- Reinforcement structural cage Q188
- Surface without special requirements / underground installation
- Flexible pipe inner diameter approx. 60mm
- Weight: 101 kg
- 4 pieces of threaded anchor M10 (stainless steel)
- 2 pieces offset threaded anchor M10 (stainless steel)
- Includes 4x M10 stainless steel screws and 4x 10mm stainless steel washers.
- Dimensions: 500mm x 300mm x 300mm
Installation: Screw thread is already countersunk in the concrete and screws and washers are included
Article number: 4260732392484
Download the assembly instructions
Material
Material
The charging station consists of special aerated concrete (C30/37 LP frost/de-icing salt resistant)
weight
weight
The charging station has a total weight of 101 kilograms
Dimensions
Dimensions
The charging station has the following dimensions: 500mm x 300mm x 300mm
Delivery time
Delivery time
If the charging station is in stock, the average delivery time via DHL is 1 working day.
100% made in Germany!
All the materials in our charging stations come from Germany. Of course, these are processed by our employees. Everything is made in Germany and therefore 100% Made in Germany.
-
Free fast delivery
In principle, you do not pay any shipping costs for deliveries in Germany. word of honour!
-
Free returns
Our promise: If, contrary to expectations, you are not satisfied or the charging station is not suitable for your purpose, you can return the goods to us free of charge.
-
Advice & Service
Are you unsure or do you have questions about charging stations? Please call us on the following telephone number: 04232 416 9999
-
Lasts a lifetime, I promise!
We guarantee that our charging station is made of 100% stainless steel (V2A) and is therefore made for eternity. It is therefore a one-time investment!
