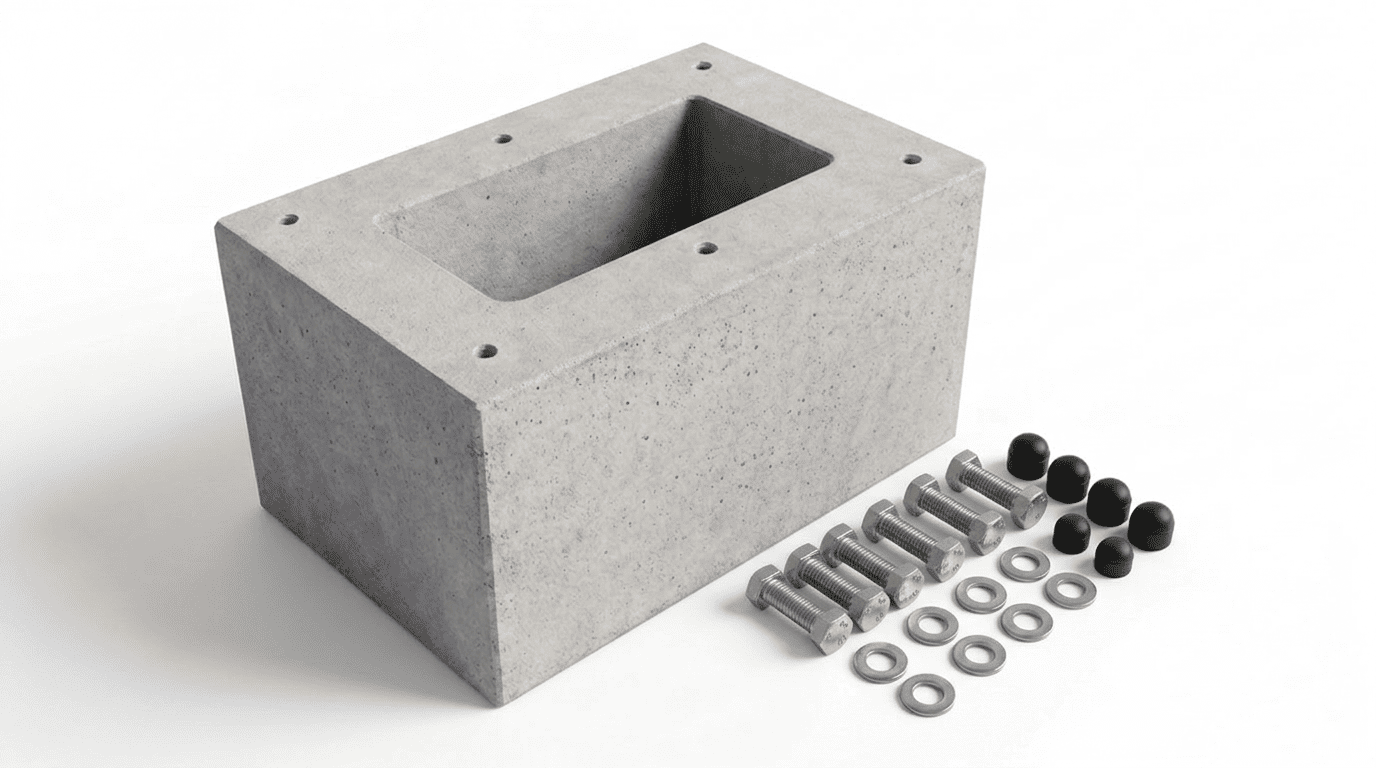

Ready-made foundation especially for KEBA base double triangle KeContact P20 / P30 V3 (article: 99839)

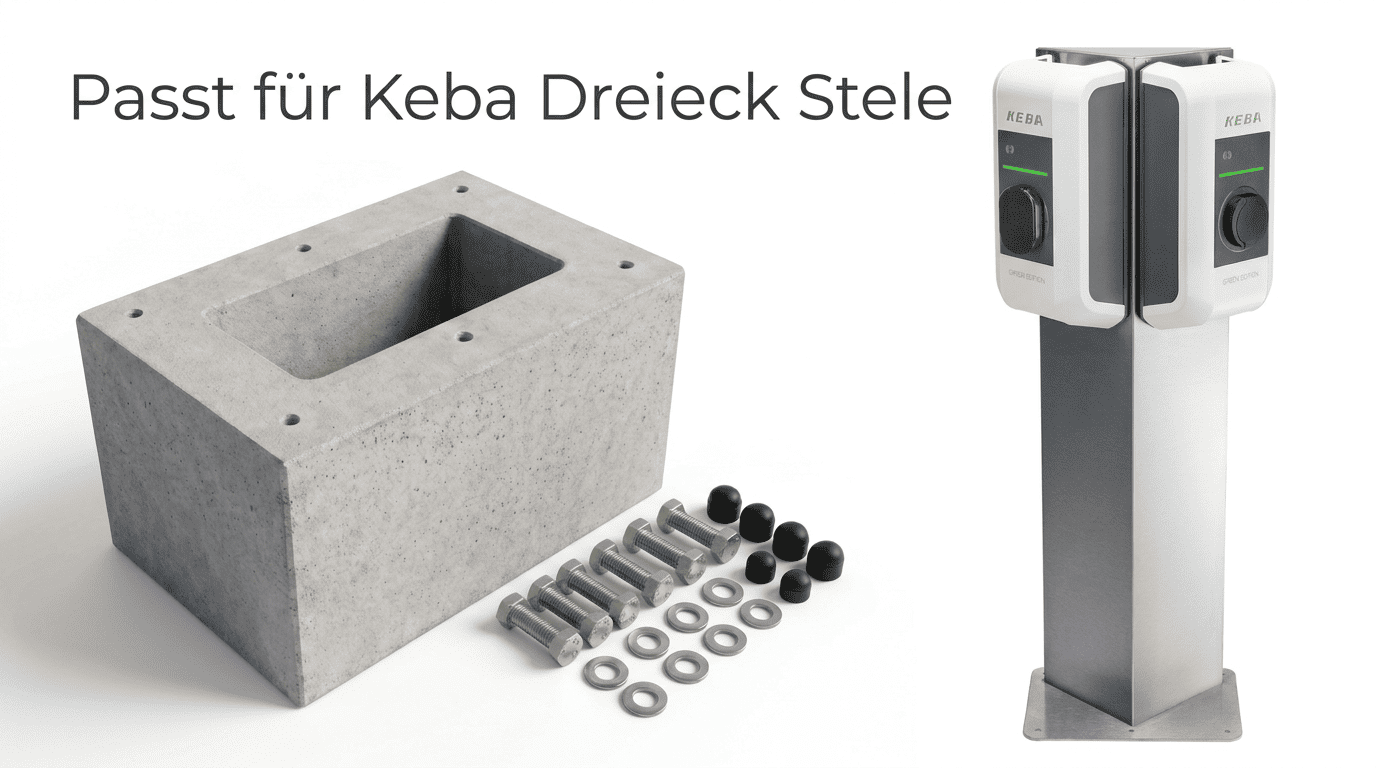

Prefabricated foundation especially for KEBA stand double triangle KeContact P20 / P30 V3 charging station (article: 99839) - quick and uncomplicated.

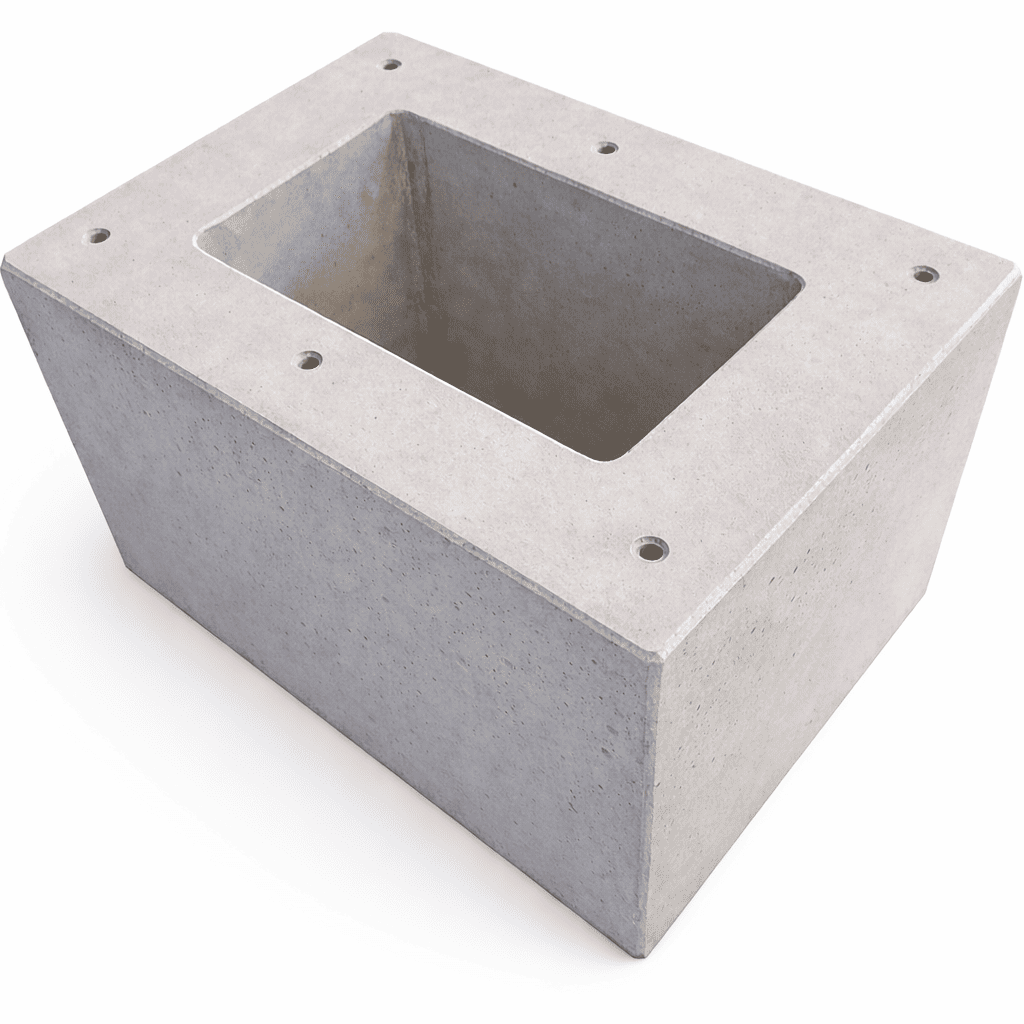

Our prefabricated foundation is specifically designed for the KeContact double triangle base from KEBA (item number: 99839) and is made of special frost-resistant aerated concrete. Like all our products, the prefabricated foundation is manufactured in Germany . This guarantees safe and proper installation. Using it ensures a level installation surface and high stability thanks to factory-installed screw anchors with included hex screws.

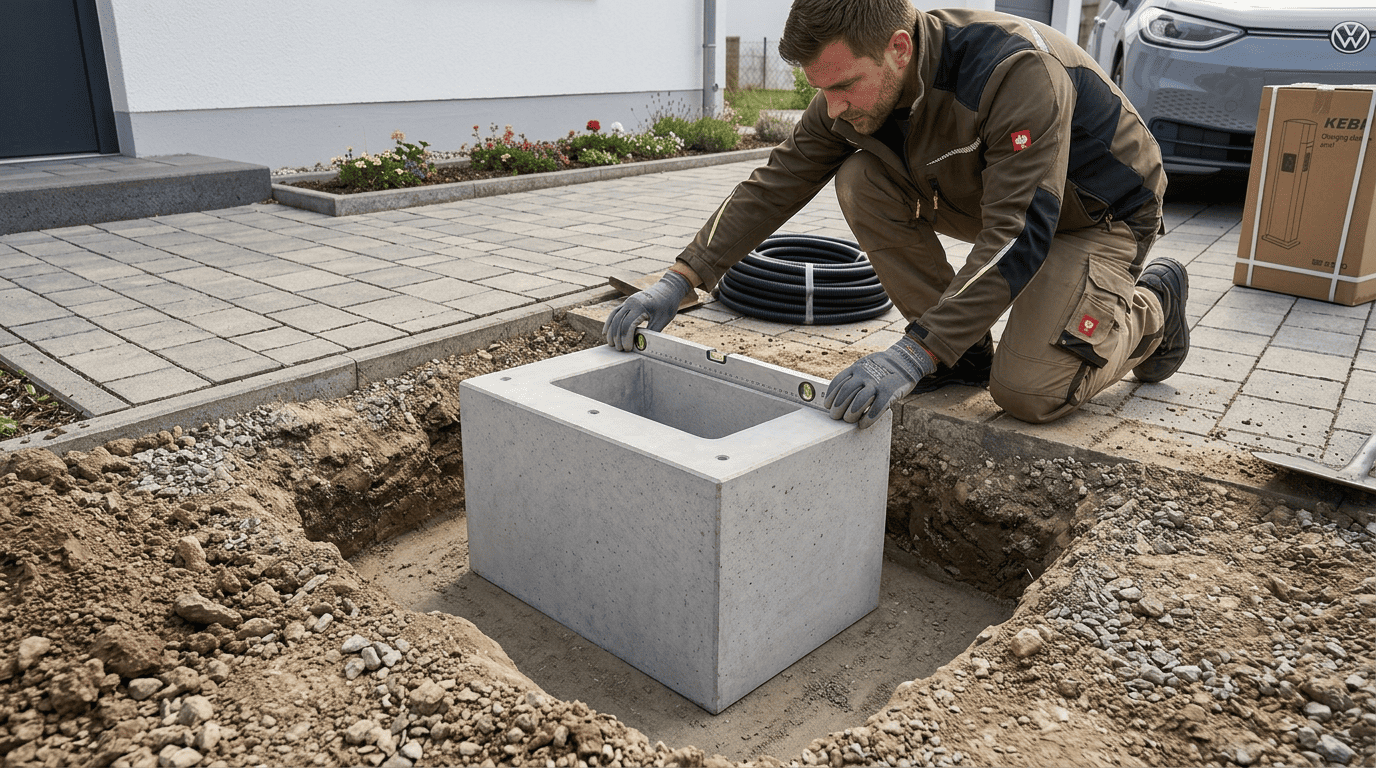

Due to the weight of 67 kg, we recommend two people handling the installation. The concrete foundation can be sunk into the ground or placed flush with the mounting surface . Overall, the concrete foundation, especially in combination with a surface-mounted base, provides the necessary stability and security for your wallbox with a stand.

We recommend stabilizing the prefabricated foundation with an additional bag of concrete. This ensures permanent, firm support.

The included anchoring kit can be easily screwed into the embedded metal threaded sleeves. The underground cable for connecting the charging station is pulled through the foundation.

For proper installation and secure positioning of the charging station, it is necessary to enclose the concrete foundation with rapid-setting concrete

Specifications

• Concrete grade: C30/37 LP frost/de-icing salt resistant
  - Surface without special requirements/ underground installation

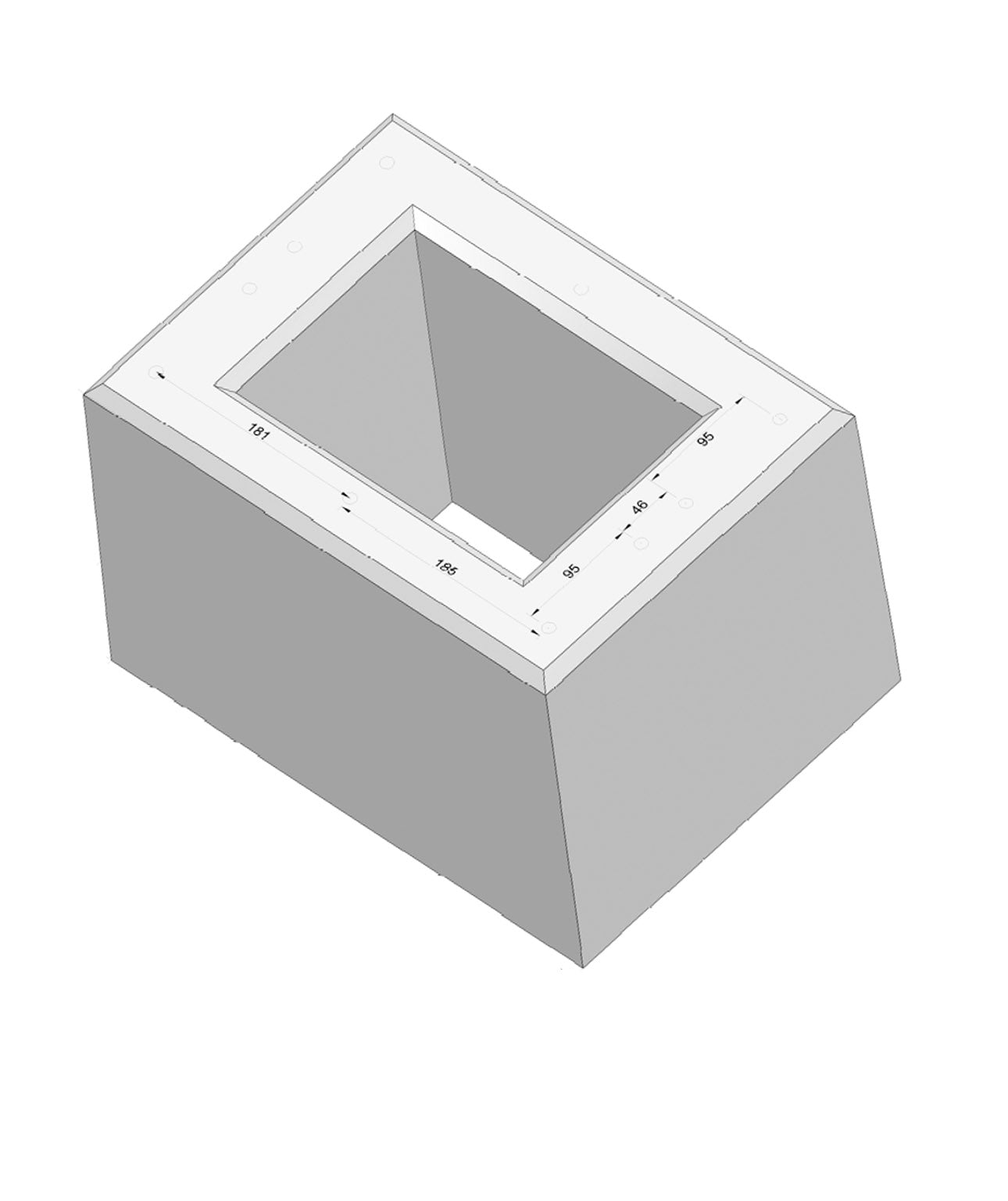

  - Bottom dimensions: 440mm x 230mm x 300mm.
  - Weight: 67 kg
  - Recess 440mm x 325
  - 10 threaded sleeves included.
  - Including mounting material M8 stainless steel screws and washers
