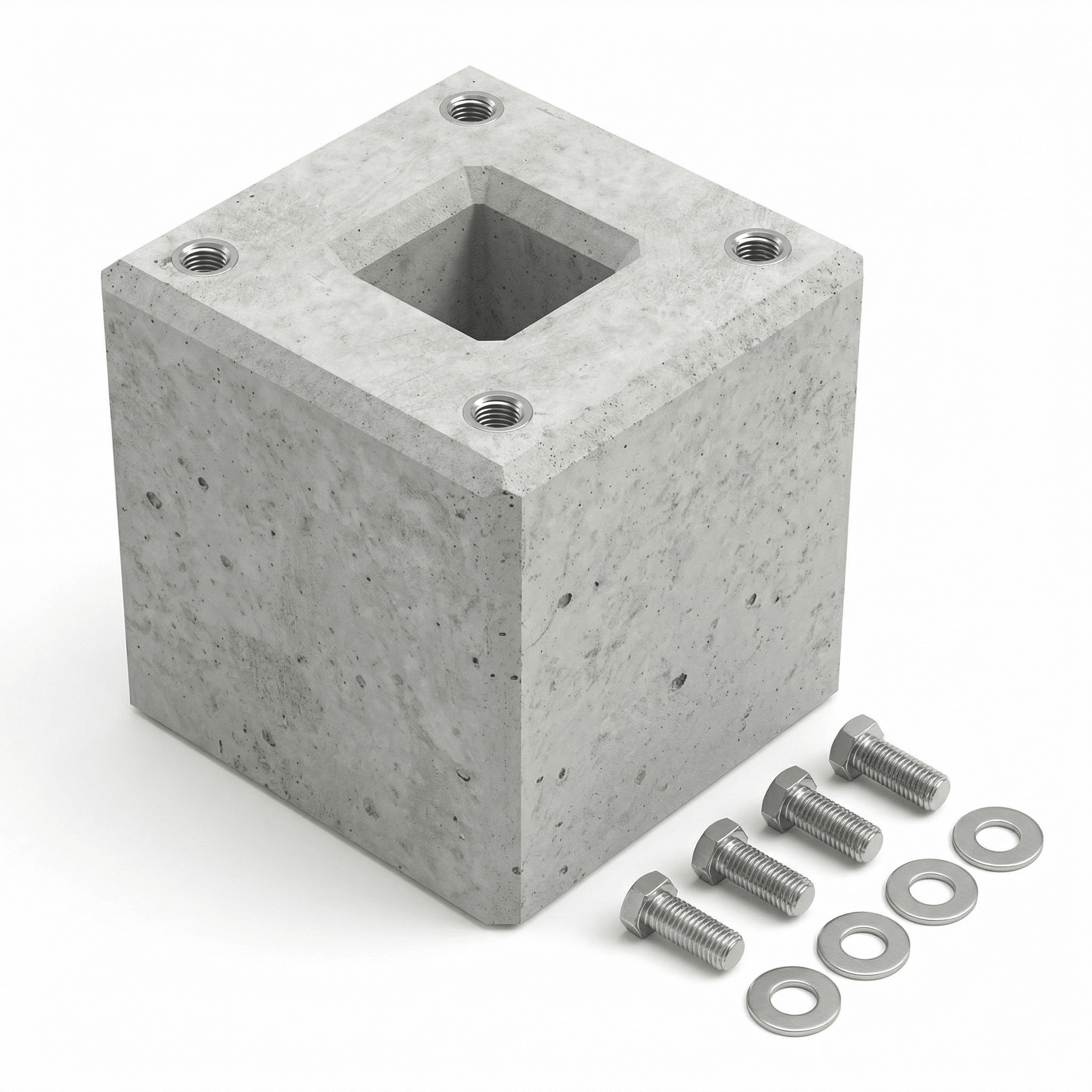

Ready-made concrete foundation specifically suitable for Original Easee Base 1-Way, 2-Way, 4-Way (90322)

Attention, this ready-made foundation only fits the original "Easee Base 1-Way, 2-Way and 4-Way 90332 from EASEE Deutschland GmbH.

Here is the Easee Base 1-Way

The foundation is made of special frost-proof aerated concrete made specifically for the base. Like all of our products, the prefabricated foundation is produced in Germany . This guarantees safe and proper installation of the Easee Base. By using it, a flat installation surface is achieved and a high level of stability is ensured via factory-installed screw anchors with the supplied hexagonal screws.

In combination with the Easee Base, the concrete foundation can optionally be sunk into the ground or set flush with the mounting base. Overall, the concrete foundation, especially in conjunction with a mounting base, provides the necessary stability and safety for your wallbox with stand.

We recommend stabilizing the finished foundation with an additional bag of concrete. This ensures a permanent, firm hold/stand.

The included anchoring set can easily be screwed into the recessed metal threaded sleeves. The underground cable for connecting the charging station is pulled through the 80mm cable bushing.

For proper installation and a secure stand of the charging station, it is necessary to surround the concrete foundation with quick-release concrete

Specifications

- Fits Easee Stand 1-Way, 2-Way and 4-Way
- INCLUDES STAINLESS STEEL SCREWS M20 and washers.
- Concrete quality: C30/37 LP Frost/de-icing salt resistant
- Surface without special requirements/ground installation
- Recess 70 x 70 mm
- Weight: 30Kg
- 4 pieces of threaded sleeves M20
- Dimensions below: 230mm x 230mm x 250mm

Assembly: Screw thread is already sunk into the concrete and screws and washers are included
